Technical Description

WTC-HR24ADCP Ultrasonic Profile Flowmeter is a new generation of contact online flow measurement products developed for urban drainage pipe networks, open channels, box culverts and other scenarios. Compared with ordinary ultrasonic flowmeters, WTC-HR24ADCP performs a maximum of 128 layers of layered velocity measurement on the target water body through phase difference coding and pulse accumulation algorithm, realizing the iterative upgrade from point measurement to line measurement, and truly presenting the flow rate, water level, flow rate and other information of the target water body.

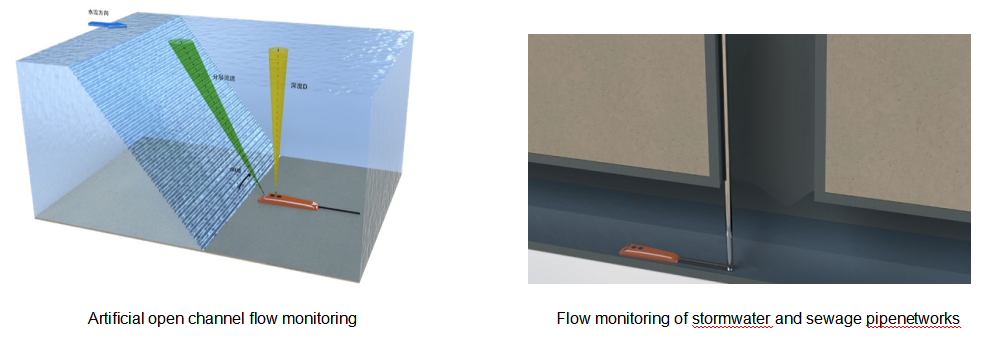

Scenario Application

Features

●   Advanced Measurement Technology

-Feature: 128 layers of layered speed measurement

-Benefit: Utilizes phase difference coding and pulse accumulation algorithm for precise hierarchical velocity measurements

●   Space-Efficient Design

-Feature: Flat design with only 2cm clear height

-Benefit: Minimal water frontal area ensures no disruption to the natural flow regime of the measured water body

●   Comprehensive Measurement Capability

-Feature: Measurement with zero dead zones

-Benefit: Enables data collection before water surface reaches the device, ensuring complete flow monitoring

●   Advanced Data Processing

-Feature: Integrated hydraulic model

-Benefit: Embeds flow calculation models developed with Hohai University, allowing direct flow data output without additional processing

●   Installation Flexibility

-Feature: Flexible installation options

-Benefit: Can be installed at either the top or bottom of pipes based on specific site conditions

●   Robust Protection Features

-Feature: Comprehensive protective design

-Benefit: Includes lightning protection, explosion-proof certification (intrinsically safe), and IP68 waterproof rating for reliable operation in challenging environments

• How does the WTC-HR24ADCP improve flow measurement accuracy compared to standard ultrasonic flowmeters?

  • It uses phase difference coding and pulse accumulation algorithms to perform up to 128 layers of stratified velocity measurement, enabling a shift from single-point to comprehensive line profiling for precise flow, water level, and discharge data in complex water bodies .

• What scenarios is the WTC-HR24ADCP best suited for?

  • Designed for urban drainage pipe networks, open channels, and box culverts, it provides real-time monitoring of flow rate, water level, and velocity, making it ideal for waterlogging-prone areas where detailed, layered data is critical
