Product Introduction
● The frame-type open channel flow meter is based on the same ultrasonic time-difference measurement principle as the box-type ultrasonic open channel flow meter. It accurately captures the time difference signals of water flow in the forward and reverse directions through bidirectional ultrasonic transceiver units, and combines with a layered independent calculation mechanism to realize three-dimensional analysis of cross-sectional velocity. It is suitable for medium-width rectangular channels with a width of 1.5m to 3.0m.

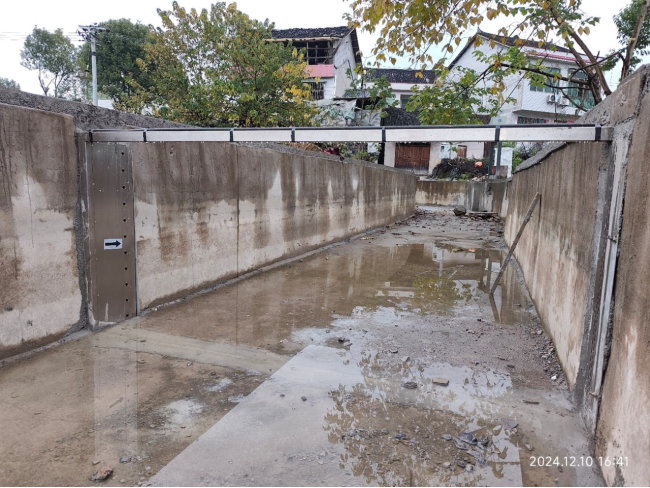

● This product adopts an aviation-grade aluminum alloy frame structure, which combines light weight and high strength. It supports two installation modes: integral hoisting and segmented assembly, which can meet the rapid deployment needs of different working conditions. When combined with the box-type ultrasonic open channel flow meter to form a "narrow-wide" combination solution, it can fully cover channels with a width of up to 3m.
