Product Introduction

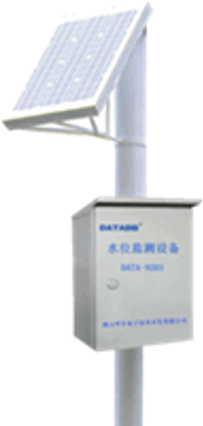

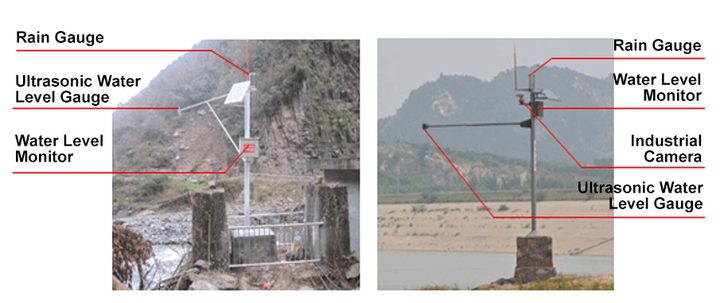

Water level monitoring points in groundwater, rivers, lakes, reservoirs, coasts and other locations are generally distributed in the wild without power supply conditions. However, real-time monitoring of water levels at these points is required in most cases. To meet such needs, our company has launched a solar-powered water level monitoring device with low-power consumption design.
Product Features

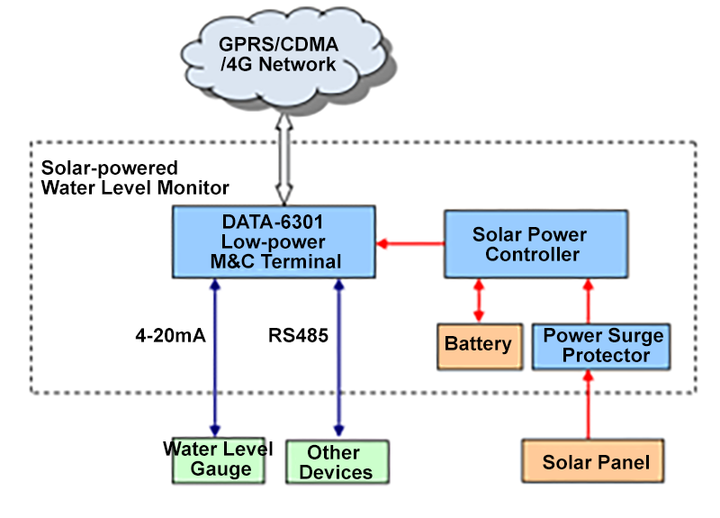

● Low power consumption design: Adopts the DATA-6301 low-power measurement and control terminal as the core device,
with an average operating current ≤10mA. When paired with a DC12V, 4~20mA water level gauge, it ensures normal operation for half a month even in rainy weather.
● Strong compatibility: Compatible with various domestic and imported water level gauges, including submersible, float-type, ultrasonic, radar, and laser types.
● Large storage capacity: Can store historical data for no less than 1 year.
● High stability: Equipped with multiple protection measures against lightning, theft, rain, moisture, dust, and salt spray.
● Easy maintenance: Supports remote configuration of working parameters and remote program upgrades.
● Flexible access: Can connect to the company's supporting upper computer software, configuration software, or user-developed monitoring software.
Product functions
● Data collection: Real-time water level data acquisition; collects power supply status and battery voltage; expandable to collect water quality, sluice position, and rainfall data.
● Communication: Supports GPRS, CDMA, 4G, SMS, or Beidou satellite communication; compatible with self-reporting and query-response data reporting modes; with flood seasonseason enhanced reporting function.
● Photography: Configurable with industrial cameras for remote photographing.
● Manual data input: Supports manual setting of working parameters and manual entry of water level data.
● Display: LCD panel shows real-time monitoring data and device working parameters.
● Storage: Local cyclic storage of monitoring data.
● External power supply: Provides 5V and 12V DC power for water level gauges, industrial cameras, etc.
● Alarm: Instantly reports alarms for water level over-limit, water level gauge disconnection, or low battery voltage.
